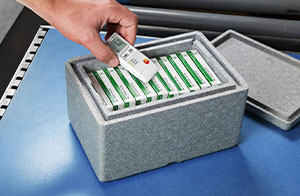

With the temperature and humidity data loggers testo 184 H1, you monitor the transport of sensitive goods such as pharmaceuticals, foods or electronics or art, over an unlimited period.
At their destination, a glance at the display or the LEDs tells you whether the configured limit values have been adhered to. In order to obtain detailed information, it is sufficient to connect the logger to a PC – a PDF report is immediately generated with all relevant data. In order for you to be able to work even more efficiently and conveniently with the data loggers, all required files and information are stored directly and securely in the testo 184 H1: Configuration file, instruction manual and PDF report of your recorded data.
The measurement value store of the temperature data logger testo 184 H1 has a capacity of 64000 measurement values. The measurement rate is freely selectable from 1 min to 24 h. The battery has a life of 500 days. The temperature data logger testo 184 H1 is supplied by a standard battery which can be exchanged by the user.
testo 184 H1 is compliant with GxP, 21 CFR Part 11 and HACCP. Testo is an ISO 9001-certified company, and ensures the adherence to the norms through internal audits as well as accredited external audits.
All advantages at a glance:
1. Clear alarm indication
A glance at the display or the LEDs is enough to know whether limit values have been violated during transport.
2. Easiest operationtesto 184 H1 is intuitively operated, and can be used without special training or previous knowledge: The “Start” button begins data recording. “Stop” ends it.
3. Easiest configurationIn each testo 184 H1, a configuration file is stored, with which the configuration of the testo 184 H1 is childsplay – no download, no installation, no user interface and no additional costs.
4. Convenient readoutA PDF report with the transport data is created immediately on connection of the testo 184 H1 data logger to the USB interface of a computer. This is suitable for long-term archiving according to PDF/A standard.
5. Mobile readout/printout on siteAll testo 184 H1 data loggers can be read out on site with an NFC-capable Android smartphone. Data transfer from the data logger to a compatible Testo fast printer (option) also functions wirelessly via NFC.
6. IT-safe
The testo 184 H1 data loggers work securely without software installation or download, so that IT problems are triggered neither by the firewall nor the virus scanner.
Temperature and humidity data logger testo 184 H1 and battery.
| Temperature – NTC Measuring range | -20 to +70 °C | Accuracy | ±0.5 °C (0 to +70 °C) ±0.8 °C (-20 to 0 °C) |
Resolution | 0.1 °C | Reaction time | t90 = 30 min | Measuring rate | 1 min to 24 h | Humidity – Capacitive Measuring range | 0 to 100 %RH | Accuracy | ±2 %RH at +25 °C (20 to 80 %RH) ±3 %RH at +25 (< 20 and > 80 %RH) ±1 %rF Hysterese ±1 %rF/year Drift |
Resolution | 0.1 %RH | Measuring rate | 1 min to 24 h | General technical data | Weight 44 g | Dimensions | 97 x 40 x 12 mm (LxWxH) | Operating temperature | -20 to +70 °C | Product-/housing material | ABS | Protection class | IP30 | System requirements | Adobe® Acrobat Reader | Product colour | white | Standards | CE 2014/30/EU; 21 CFR Part 11 | Certificate type | Certified by HACCP International | Channels | 2 internal | Operating time | Unlimited | Authorizations | CE | Alarm function | by LED and Display | Battery type | Lithium battery CR2450, 3V, exchangeable | Battery life | 500 days (at +25 °C and 15 mins measurement rate). | Display type | segment LCD | Display size | one-line | Display ligthing | no | Interface | USB; NFC | Memory | 64,000 measuring values | Storage temperature | -55 to +70 °C |
|---|
