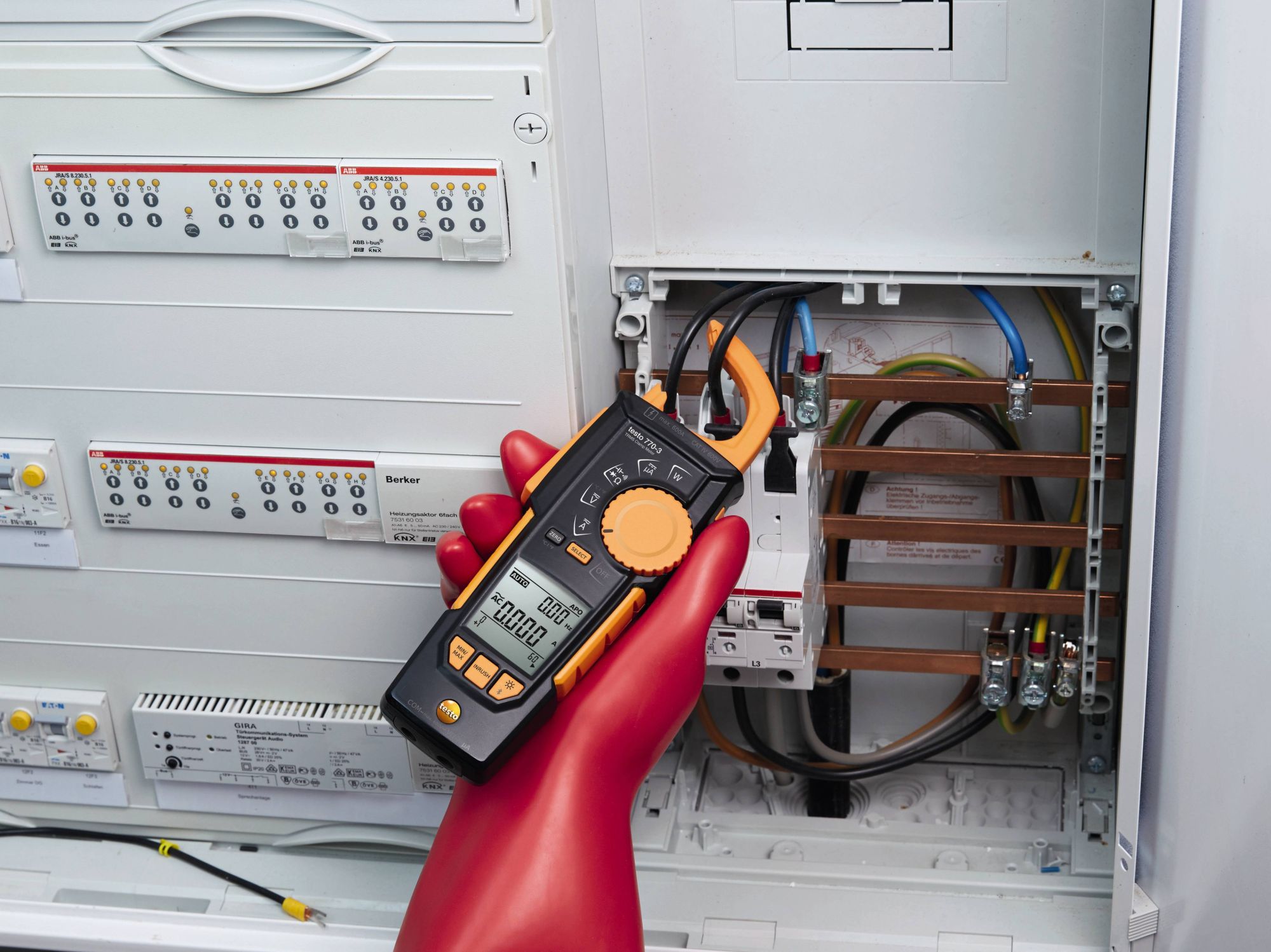

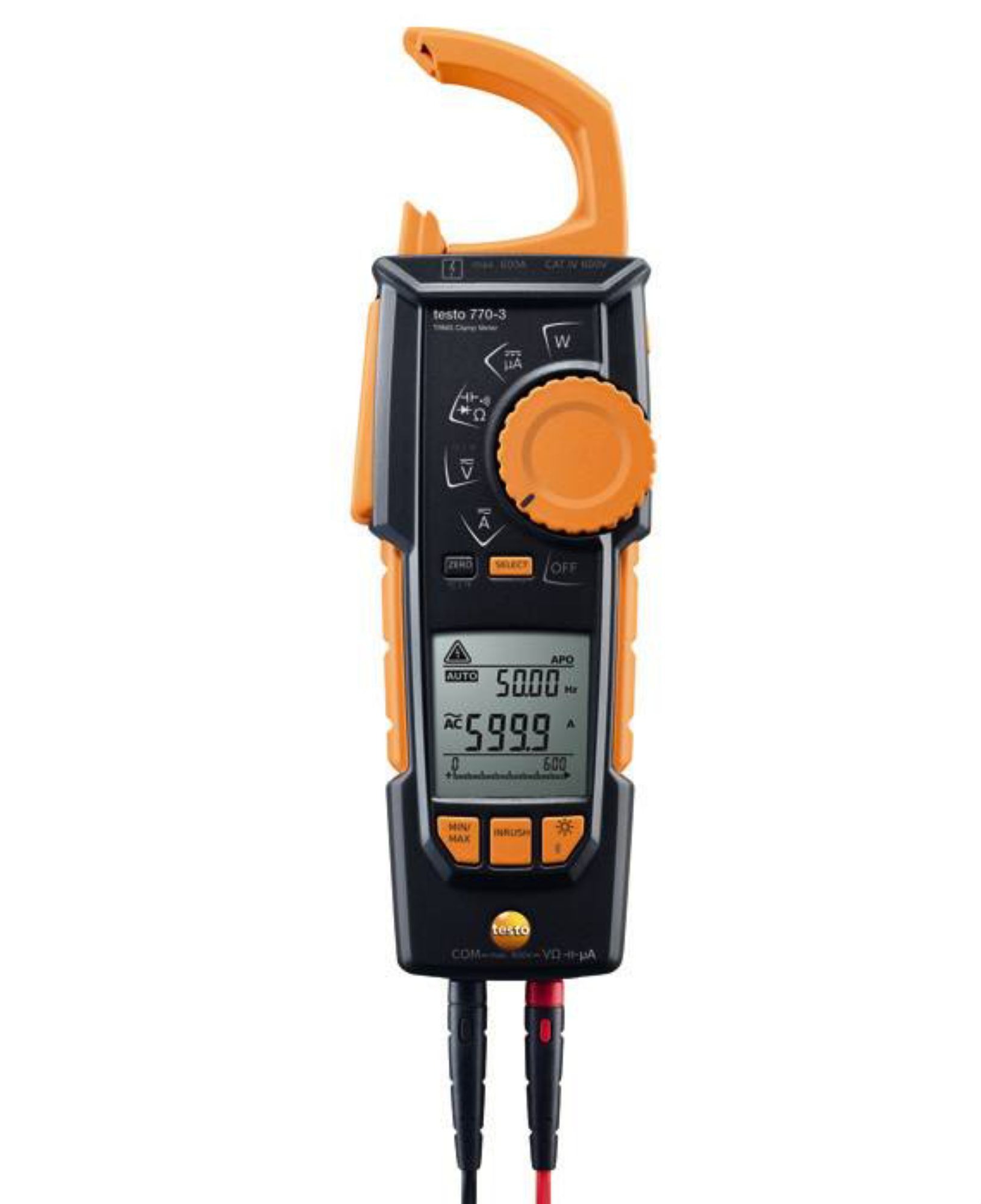

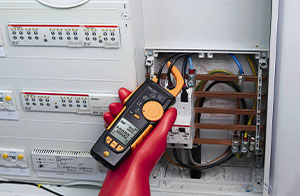

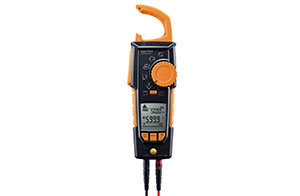

The testo 770-3 clamp meter is the ideal clamp amperemeter for demanding measuring tasks in tight application environments. The movable pincer arm can be fully retracted into the instrument. This enables the instrument to grab tightly packed cables in a particularly accurate way. In addition, more specialized applications can be handled using the clamp meter, such as starting current, power and µA measurements. The supplied temperature adapter for thermocouple probes can be used to measure electrical parameters as well as temperatures (compatible type K thermocouple probe can be ordered separately). The clamp amperemeter automatically detects and selects AC/DC and other parameters, such as resistance, continuity, diode and capacitance,. This makes operation easier and more reliable than ever before. Your readings are clearly and distinctly presented on the two-line display. In addition to this, the testo 770-3 offers a performance measurement function and can be connected via Bluetooth to the testo Smart Probes App. In the App, the measurement curve can be displayed as a graph on your smartphone/tablet and directly documented in the report.
testo 770-3 TRMS clamp meter, including batteries, 1 set of measuring cables (0590 0010), calibration protocol and instruction manual.
| General Technical Data | ||||||||||||
| Operating humidity | 0 to 80.0 %RH | |||||||||||
| Temperature – NTC | ||||||||||||
| Measuring range | -20 to +500 °C | |||||||||||
| Resolution | 0.2 °C | |||||||||||
| Accuracy | ±1 °C (0 to +100 °C) | |||||||||||
| DC voltage | ||||||||||||
| Measuring range | 1.0 to 600.0 V | |||||||||||
| Resolution | max. 1 mV | |||||||||||
| Accuracy | ± (0.8 % of mv + 3 Digit) | |||||||||||
| AC voltage | ||||||||||||
| Measuring range | 1.0 mV to 600.0 V | |||||||||||
| Resolution | max. 1 mV | |||||||||||
| Accuracy | ± (1 % of mv + 3 Digit) | |||||||||||
| DC current | ||||||||||||
| Measuring range | 0.1 to 600.0 A (clamp) 0.1 to 600.0 μA (measuring cables) | |||||||||||
| Resolution | 0.1 (clamp) 0.1 (measuring cables) | |||||||||||
| Accuracy | ± (2 % of mv + 5 Digit) (clamp) ± (2 % of mv + n2{#0} ) (measuring cables) | |||||||||||
| AC current | ||||||||||||
| Measuring range | 0.1 to 600.0 A (clamp) 0.1 to 600.0 μA (measuring cables) | |||||||||||
| Resolution | 0.1 A (clamp) 0.1 μA (measuring cables) | |||||||||||
| Accuracy | ± (2 % of mv + 5 Digit) (clamp) ± (1.5 % of mv + 5 Digit) (measuring cables) | |||||||||||
| Resistance Resolution | ||||||||||||
| Measuring range | max. 0.01 Ohm / 0.01 to 60.0 MOhm | |||||||||||
| Accuracy | ± (1.5 % of mv + 3 Digit) | |||||||||||
| Frequency Resolution | ||||||||||||
| Measuring range | max. 0.1 Hz /0.01 Hz to 9999 kHz | |||||||||||
| Accuracy | ± (1 % of mv + 1 Digit) | |||||||||||
| Active Power | ||||||||||||
| Measuring range | 0.1 W to 600 kW | |||||||||||
| Accuracy | ± (5 % of mv + 5 Digit) | |||||||||||
| Resolution | 0.1 W | |||||||||||
| Reactive Power | ||||||||||||
| Measuring range | 0.1 to 600.0 kvar | |||||||||||
| Accuracy | ± (10 % of mv + 5 Digit) | |||||||||||
| Resolution | 0.1 var | |||||||||||
| Apparent Power | ||||||||||||
| Measuring range | 0.1 VA to 600.0 kVA | |||||||||||
| Accuracy | ± 1 Digit | |||||||||||
| Resolution | 0.1 VA | |||||||||||
| Direct current DC Voltage | ||||||||||||
| Measuring range | 0.1 W to 600.0 kW | |||||||||||
| Accuracy | ± 1 Digit | |||||||||||
| Resolution | max. 0.1 W | |||||||||||
| Power Factor | ||||||||||||
| Measuring range | -1.00 to +1.00 | |||||||||||
| Accuracy | ± (10 % of mv + 5 Digit) | |||||||||||
| Resolution | 0.01 | |||||||||||
