Description

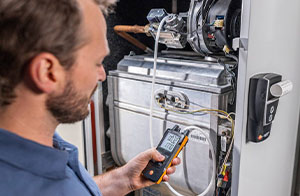

The compact measuring instrument testo 512-1, which measures pressures up to 200 hPa. In practical use, it convinces with its flexibility and variety of applications. Checking the gas pressure on burners by measuring gas flow pressure and static gas pressure is just as quick and precise as checking filters and Pitot tube measurement in the ventilation duct. The position-independent differential pressure sensor ensures reliable and highly accurate measurement results.
Delivery scope

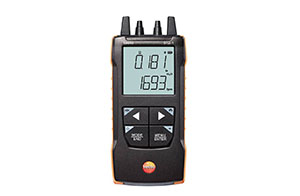

testo 512-1 – Differential pressure measuring instrument with App connection, measuring range 0 to 200 hPa, audible alarm
Transport bag
Connection hose made of silicone
Calibration protocol
3 x AA batteries
Technical Data
| General technical data | |
| Weight | 190.0 g |
| Dimensions | 146 x 60 x 28 mm |
| Operating temperature | -20 to +50 °C |
| Protection Housing | ABS + PC / TPE |
| Protection class | IP40 |
| Battery type | 3x AA |
| Battery life | 120 h |
| Storage temperature | -20 to +50 °C |
| Technical Data Differential Pressure – Piezoresistive | |
| Measuring range | 0 to +2000 hPa |
| Accuracy | ±(0.3 Pa + 1 % of mv)± digit (0 to 25.00 hPa) ±(0.1 hPa + 1.5 % of mv)± digit (25.0 to 200.00 hPa) |
| Resolution | 0.001 hPa (0 to + 2.0 hPa)) 0.01 hPa (2.01 to + 20.0 hPa)) 0.10 hPa (20.1 to + 200.0 hPa)) |
