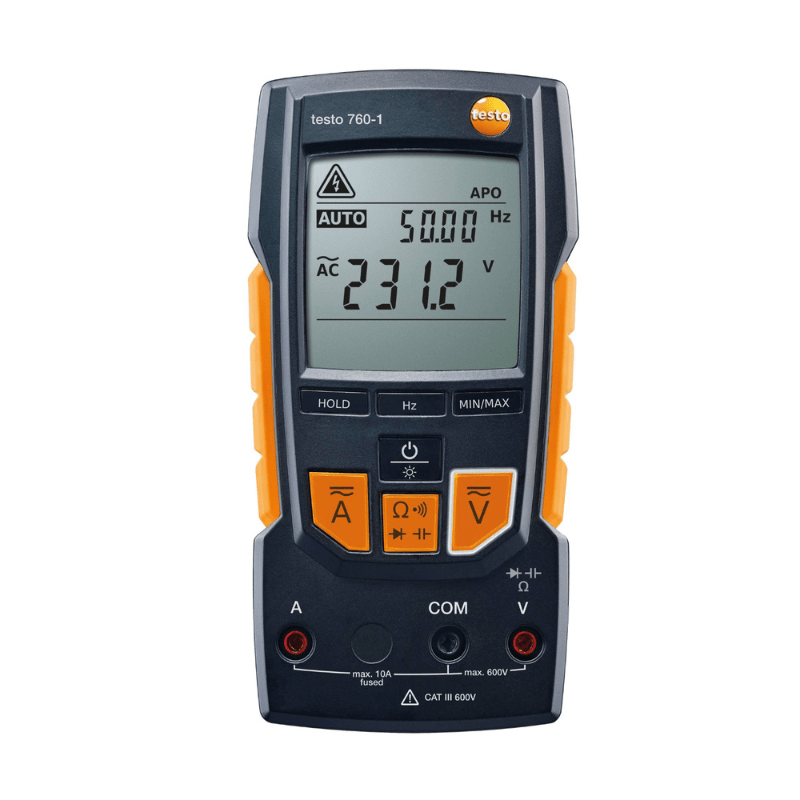

When measuring electrical parameters such as current, voltage or resistance, you depend on absolutely reliable measuring instruments. The testo 760-1 hands you a digital multimeter which sets new standards in terms of reliability. In comparison to standard multimeters on the market, with the testo 760-1 there is no need to first select the measuring sockets and then the measurement function. The instrument detects the appropriate measurement parameter via the socket assignment all on its own – and so rules out any dangerous incorrect settings. The operation of the multimeter is easier and more modern than ever. The traditional dial is replaced by function keys, enabling you to control the instrument with just one hand. And thanks to the large, illuminated display you can see your readings clearly at a glance. The testo 760-1 has the most important functions for your daily measuring tasks and is therefore the ideal entry-level instrument in the digital multimeter class.
testo 760-1 multimeter, including batteries, 1 set of measuring cables (0590 0010), calibration protocol and instruction manual.
| General Technical Data | |
| Operating humidity | 0 to 80 %RH |
| Weight | 340 g |
| Dimensions | 167 x 85 x 45 mm |
| Operating temperature | -10 to +50 °C |
| Product colour | Black |
| Protection class | 4 IP64 |
| Standards | EN 61326-1; EN 61010-2-033; EN 61140 |
| Battery type | 2 AAA micro batteries |
| Display type | LCD (Liquid Crystal Display) |
| Display size | 2-line |
| Interface | 4 measuring jacks |
| Storage temperature | -15 to +60 °C |
| Overvoltage Category | CAT IV 600V; CAT III 1000V |
| Authorizations | CSA; CE |
| Internal_resistance | 11 MOhm (AC / DC) |
| Instrument Measurement Functions Diode test | yes |
| Display ligthing | yes |
| Continuity testing | yes |
| Hold | yes |
| Display (counts) | 4,000 |
| MinMax (counts) | yes |
| Autom. measurement parameter detection | yes |
| DC voltage | |
| Measuring range | 0.1 to 600 V |
| Resolution | max. 0.1 V |
| Accuracy | ± (0.8 % of mv + 3 Digit) |
| DC current | |
| Measuring range | 0.1 mA to 10 A |
| Resolution | max. 0.1 |
| Accuracy | ± (1.5 % of mv + 5 Digit) |
| AC voltage | |
| Measuring range | 0.1 mV to 600 V |
| Resolution | max. 0.1 mV |
| Accuracy | ± (1.0 % of mv + 3 Digit) |
| AC current | |
| Measuring range | 0.1 mA to 10 A |
| Resolution | max. 0.1 mA |
| Accuracy | ± (1.0 % of mv + 3 Digit) |
| Resistance Resolution | |
| Measuring range | 0.1 to 40.00 MOhm |
| Accuracy | ± (1.5 % of mv + 3 Digit) |
| Capacitance Resolution | |
| Measuring range | max. 0.01 nF / 10 nF to 100 μF |
| Accuracy | ± (1.5 % of mv + 5 Digit) |
| Frequency Resolution | |
| Measuring range | max. 0.001 Hz / 2 Hz to 512.0 kHz |
| Accuracy | ± (0.1 % of mv + 1 Digit) |
