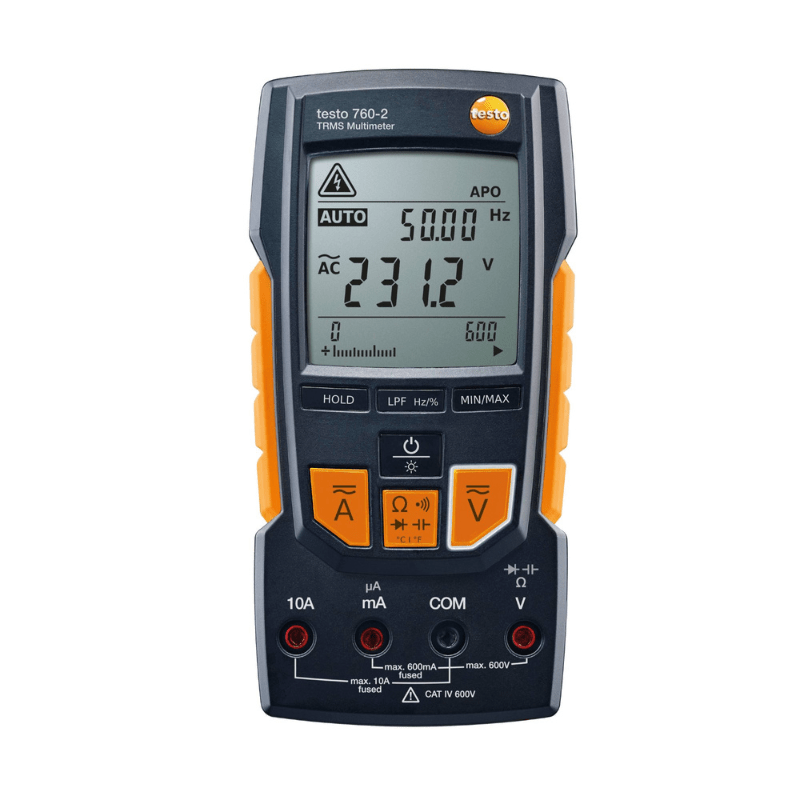

The testo 760-2 digital handheld multimeter means you can measure electrical parameters more easily and reliably than ever before. In contrast to other multimeters, the testo 760-2 automatically detects the appropriate measurement parameter via the socket assignment – and therefore rules out any dangerous incorrect settings. It is not operated conventionally by a dial, but with illuminated function keys. This means you can easily control the measuring instrument with just one hand. The large, illuminated display shows the readings clearly. The testo 760-2 digital multimeter has the most important functions for measuring current, voltage and resistance. The measurement of current strength is also possible in the µA range thanks to the larger measuring range. And the integrated low-pass filter achieves more accurate measurement results on frequency converter controlled motors. Temperatures can also be measured with this multimeter in addition to electrical parameters.
testo 760-2 TRMS multimeter, including batteries, 1 set of measuring cables (0590 0010), 1 x adapter for thermocouples type K, calibration protocol and instruction manual.
| General Technical Data | |
| Operating humidity | 0 to 80 %RH |
| Weight | 340 g |
| Dimensions | 167 x 85 x 45 mm |
| Operating temperature | -10 to +50 °C |
| Product colour | Black |
| Protection class | 4 IP64 |
| Standards | EN 61326-1; EN 61010-2-033; EN 61140 |
| Battery type | 3 AAA micro batteries |
| Display type | LCD (Liquid Crystal Display) |
| Display size | 2-line |
| Interface | 4 measuring jacks |
| Storage temperature | -15 to +60 °C |
| Overvoltage Category | CAT III 1000V; CAT IV 600V |
| Authorizations | CSA; CE |
| Internal_resistance | 11 MOhm (AC / DC) |
| Instrument Measurement Functions Diode test | yes |
| Display ligthing | yes |
| Continuity testing | yes |
| μA current measuring range | yes |
| Hold | yes |
| True RMS | yes |
| Temperature measurement with adapter | yes |
| Duty cycle measurement | yes |
| Display (counts) | 6,000 |
| MinMax (counts) | yes |
| Autom. measurement parameter detection | yes |
| Temperature – TC Type K (NiCr-Ni) | |
| Measuring range | -20 to +500 °C |
| Resolution | 0.2 °C |
| Accuracy | ±1 °C (0 to +100 °C) |
| DC voltage | |
| Measuring range | 0.1 to 600 V |
| Resolution | max. 0.1 V |
| Accuracy | ± (0.8 % of mv + 3 Digit) |
| DC current | |
| Measuring range | 0.1 μA to 10 A |
| Resolution | max. 0.1 |
| Accuracy | ± (1.5 % of mv + 5 Digit) |
| AC voltage | |
| Measuring range | 0.1 mV to 600 V |
| Resolution | max. 0.1 mV |
| Accuracy | ± (1.0 % of mv + 3 Digit) |
| AC current | |
| Measuring range | 0.1 μA to 10 A |
| Resolution | max. 0.1 μA |
| Accuracy | ± (1.5 % of mv + 5 Digit) |
| Resistance Resolution | |
| Measuring range | max. 0.01 Ohm / 0.01 to 60.00 MOhm |
| Accuracy | ± (1.5 % of mv + 3 Digit) |
| Capacitance Resolution | |
| Measuring range | max. 0.01 nF / 2 nF to 30.00 mF |
| Accuracy | ± (1.5 % of mv + 5 Digit) |
| Frequency Resolution | |
| Measuring range | max. 0.1 Hz / 2 Hz to 60.00 MHz |
| Accuracy | ± (0.1 % of mv + 1 Digit) |
