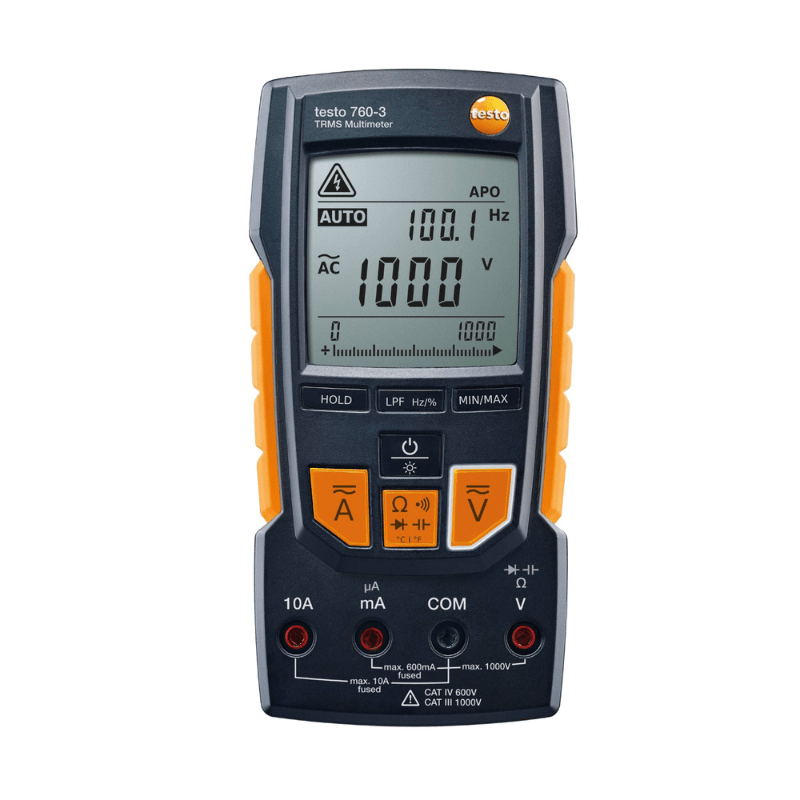

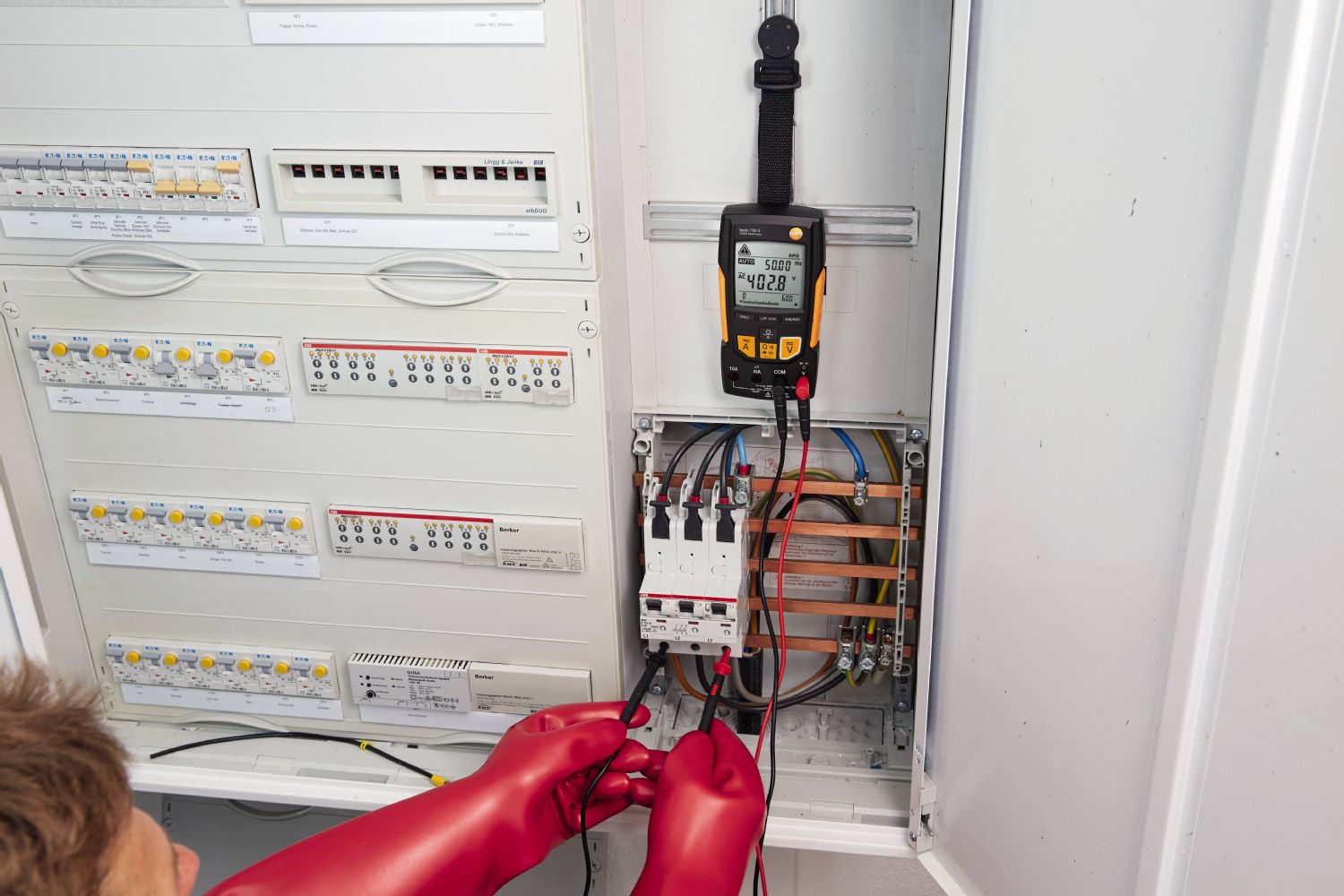

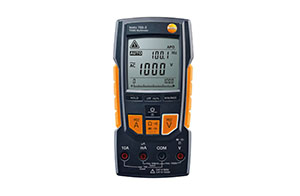

The testo 760-3 digital multimeter is the multitasker for all important professionals in the electricity sector. It enables you to carry out both simple and demanding electrical measuring tasks more reliably than ever before. The testo 760-3 automatically detects the appropriate measurement parameter via the socket assignment and so prevents dangerous incorrect settings. A voltage range of up to 1,000 V, a frequency range of up to 30 MHz and capacitance of up to 60,000 µF mean the testo 760-3 multimeter can also be used for industrial applications, such as troubleshooting in large electrical systems. And the integrated low-pass filter achieves more accurate measurement results on frequency converter controlled motors. Temperatures can also be measured with this multimeter in addition to electrical parameters. You will need the clip-on type K thermocouple adapter and a temperature probe (both items can be ordered separately).
testo 760-3 TRMS multimeter, including batteries, 1 set of measuring cables (0590 0010), calibration protocol and instruction manual.
| General Technical Data | |
| Operating humidity | 0 to 80 %RH |
| Weight | 340 g |
| Dimensions | 167 x 85 x 45 mm |
| Operating temperature | -10 to +50 °C |
| Product colour | Black |
| Connectable probes | 1 x temperature probe (adapter required for type K thermocouples) |
| Protection class | 4 IP64 |
| Standards | EN 61326-1; EN 61010-2-033; EN 61140 |
| Battery type | 3 AAA micro batteries |
| Display type | LCD (Liquid Crystal Display) |
| Display size | 2-line |
| Interface | 4 measuring jacks |
| Storage temperature | -15 to +60 °C |
| Overvoltage Category | CAT IV 600V; CAT III 1000V |
| Authorizations | CSA; CE |
| Internal_resistance | 11 MOhm (AC / DC) |
| Instrument Measurement Functions Diode test | yes |
| Display ligthing | yes |
| Continuity testing | yes |
| Current probe measurement with adapter | yes |
| Hold | yes |
| True RMS | yes |
| Low-pass filter | yes |
| Temperature measurement with adapter | yes |
| Duty cycle measurement | yes |
| Display (counts) | 6,000 |
| μA current measuring range | yes |
| MinMax (counts) | yes |
| Autom. measurement parameter detection | yes |
| Temperature – TC Type K (NiCr-Ni) | |
| Measuring range | -20 to +500 °C |
| Resolution | 0.2 °C |
| Accuracy | ±1 °C (0 to +100 °C) |
| DC voltage | |
| Measuring range | 0.1 to 1000 V |
| Resolution | max. 0.1 V |
| Accuracy | ± (0.8 % of mv + 3 Digit) |
| DC current | |
| Measuring range | 0.1 μA to 10 A |
| Resolution | max. 0.1 |
| Accuracy | ± (1.5 % of mv + 5 Digit) |
| AC voltage | |
| Measuring range | 0.1 mV to 1000 V |
| Resolution | max. 0.1 mV |
| Accuracy | ± (1.0 % of mv + 3 Digit) |
| AC current | |
| Measuring range | 0.1 μA to 10 A |
| Resolution | max. 0.1 μA |
| Accuracy | ± (1.5 % of mv + 5 Digit) |
| Resistance Resolution | |
| Measuring range | max. 0.01 Ohm / 0.01 to 60.00 MOhm |
| Accuracy | ± (1.5 % of mv + 3 Digit) |
| Capacitance Resolution | |
| Measuring range | max. 0.01 nF / 2 nF to 30.00 mF |
| Accuracy | ± (1.5 % of mv + 5 Digit) |
| Frequency Resolution | |
| Measuring range | max. 0.1 Hz / 2 Hz to 60.00 MHz |
| Accuracy | ± (0.1 % of mv + 1 Digit) |
