Description

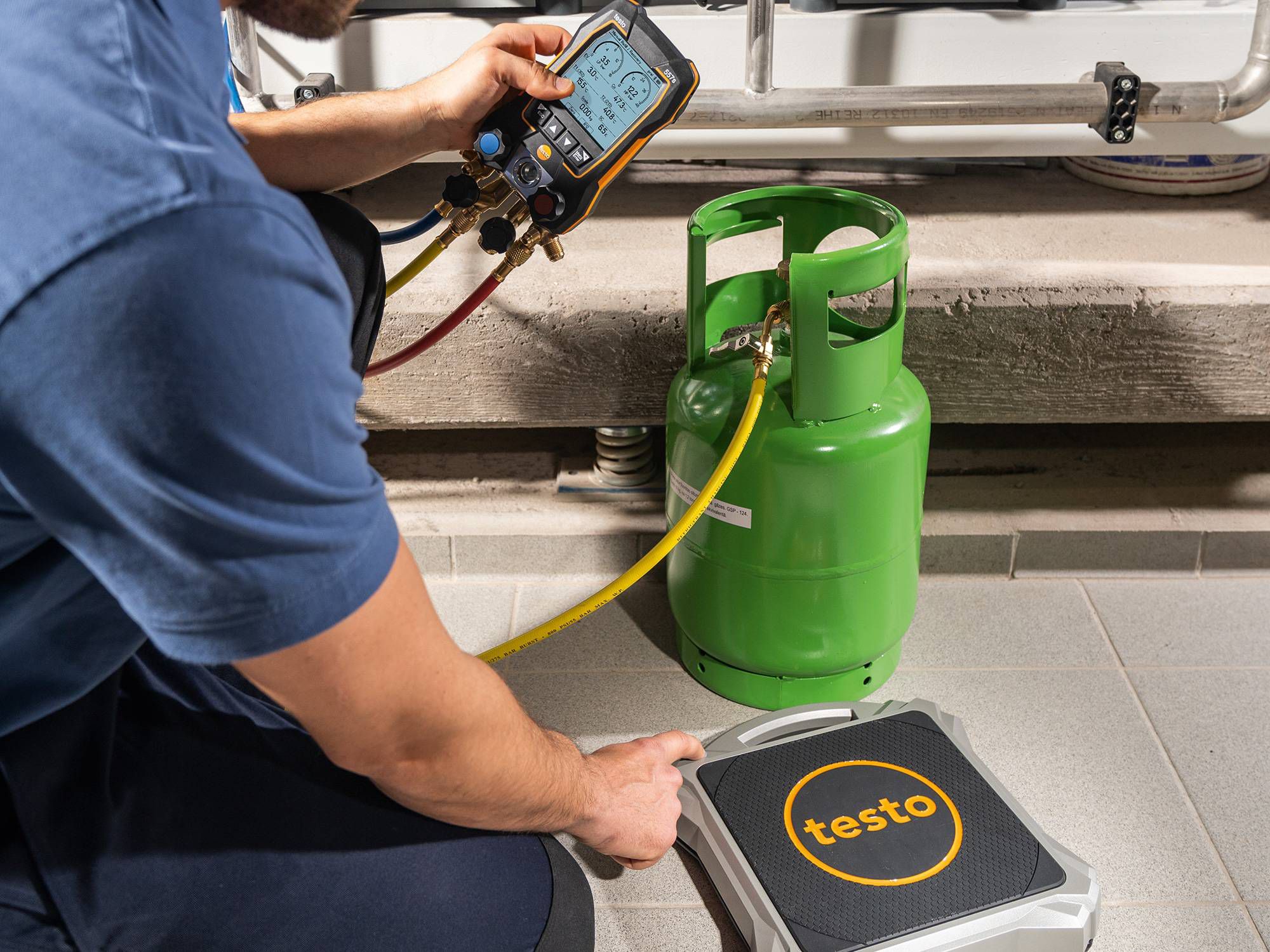

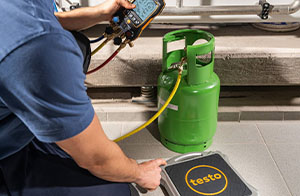

With the testo 560i wireless refrigerant scale, you can measure refrigerant weight quickly, precisely and conveniently. Use a Testo manifold and the testo Smart App on your smartphone/tablet for operation and measured value display after the scale has automatically connected to both via Bluetooth.
Delivery scope

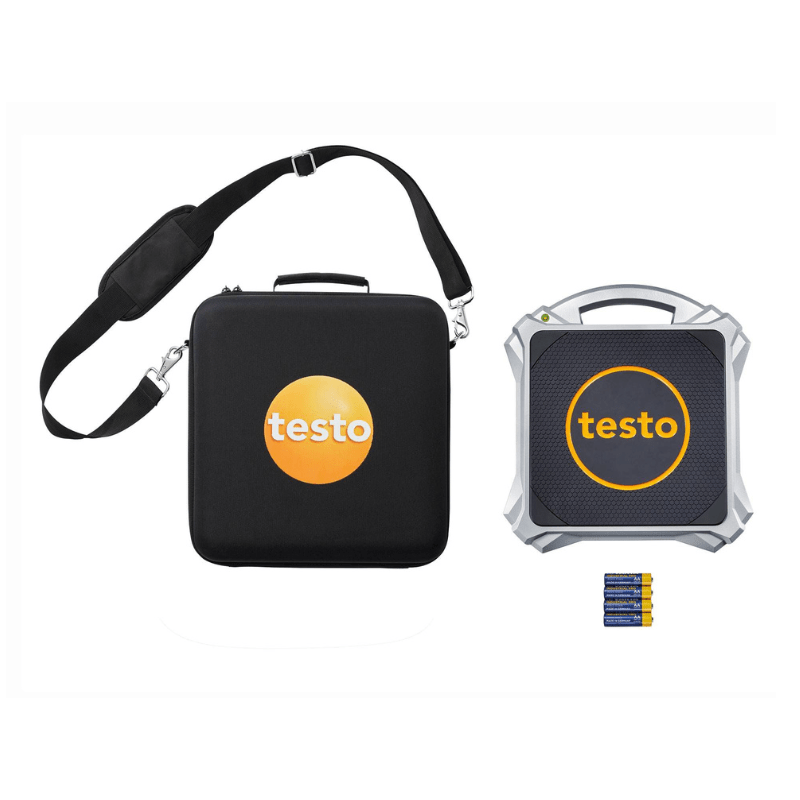

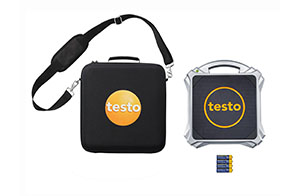

testo 560i digital refrigerant scale with Bluetooth
Shoulder bag
4 x batteries (AA)
Instruction manual
Technical Data
| General technical data | |
| Weight | 4.36 kg (incl. batteries and bag) |
| Dimensions | 310 x 287 x 58 mm (LxWxH) |
| Operating temperature | -10 to +50 °C |
| Measuring range | 0 to 100 kg |
| Accuracy | Operating temperature +22 °C: ≤ ±(10 g+ 0.03 %rdg) (0 to 30 kg) ≤ ±(10 g+ 0.05 %rdg) (30 to 100 kg) |
| Resolution | 0.01 kg |
| Protection class | IP44 |
| Battery type | 4 x type AA batteries |
| Battery life | > 70 h at +25 °C |
| Interface | Bluetooth® 4.2 |
| Radio range | 30 m |
| Storage temperature | -10 to +50 °C |
