Description
The testo 310 II has two measurement cells for O2 and CO, and a temperature sensor integrated into the flue gas probe. The gas sensors measure the exact oxygen and carbon monoxide content as well as the flue gas and ambient temperature.

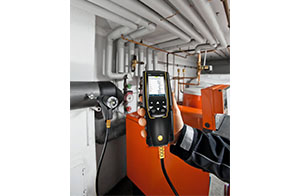

Measurement accuracy, configurable measurement display, parallel measurement options, intuitive operation, sturdy housing, connection option to the testo Smart App: Our flue gas analyzer testo 310 II offers everything that heating fitters and technicians need for practical work on heating systems.
Delivery scope

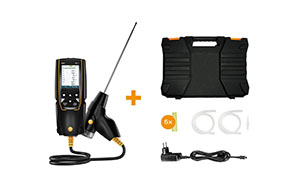

Flue gas analyzer testo 310 II incl. rech. battery and calibration protocol for the measurement of O2, CO, hPa and °C, probe 180 mm with cone, silicon hose for pressure measurement, particle filters 5 off. and case.
Technical Data
Technical Data
Temperature – TC Type K (NiCr-Ni)
Measuring range
-20 to +100 °C
Accuracy
±1 °C
Resolution
0.1 °C
Reaction time
< 50 s
Temperature (ambient temperature)
Temperature – TC Type J (Fe-CuNi)
Measuring range
0 to +400 °C
Accuracy
±1 °C (0 to +100 °C)
±1.5 % of mv (> 100 °C)
Resolution
0.1 °C
Reaction time
< 50 s
Temperature (flue gas)
Flue gas O₂
Measuring range
0 to 21 Vol.%
Accuracy
±0.2 Vol.%
Resolution
0.1 Vol.%
Reaction time t₉₀
30 s
Differential Pressure flue gas Draught – Piezoresistive
Measuring range
-20 to +20 hPa
Accuracy
±0.03 hPa (-3.00 to +3.00 hPa)
±1.5 % of mv (Remaining Range)
Resolution
0.01 hPa
Flue gas degree of effectivity, Eta (calculated)
Measuring range
0 to 120 %
Resolution
0.1 %
Flue gas loss (calculated)
Measuring range
0 to 99.9 %
Resolution
0.1 %
Pressure measurement
Measuring range
-40 to +40 hPa
Accuracy
±0.5 hPa
Resolution
0.1 hPa
Flue gas CO (without H₂-compensation)
Measuring range
0 to 4000 ppm
Accuracy
±20 ppm (0 to 400 ppm)
±5 % of mv (401 to 2000 ppm)
±10 % of mv (2001 to 4000 ppm)
Resolution
1 ppm
Reaction time t₉₀
60 s
Ambient CO
Measuring range
0 to 4000 ppm
Accuracy
±20 ppm (0 to 400 ppm)
±5 % of mv (401 to 2000 ppm)
±10 % of mv (2001 to 4000 ppm)
Resolution
1 ppm
Reaction time
60 s
General technical data
Weight
Approx. 660 g
Dimensions
201 x 83 x 44 mm
Operating temperature
-5 to +45 °C
Display function
Graphic 7-line display
Power supply
Battery: 1500 mAh, mains unit 5V/1A
Storage temperature
-20 to +50 °C
-20 to +100 °C
Accuracy
±1 °C
Resolution
0.1 °C
Reaction time
< 50 s
Temperature (ambient temperature)
Temperature – TC Type J (Fe-CuNi)
Measuring range
0 to +400 °C
Accuracy
±1 °C (0 to +100 °C)
±1.5 % of mv (> 100 °C)
Resolution
0.1 °C
Reaction time
< 50 s
Temperature (flue gas)
Flue gas O₂
Measuring range
0 to 21 Vol.%
Accuracy
±0.2 Vol.%
Resolution
0.1 Vol.%
Reaction time t₉₀
30 s
Differential Pressure flue gas Draught – Piezoresistive
Measuring range
-20 to +20 hPa
Accuracy
±0.03 hPa (-3.00 to +3.00 hPa)
±1.5 % of mv (Remaining Range)
Resolution
0.01 hPa
Flue gas degree of effectivity, Eta (calculated)
Measuring range
0 to 120 %
Resolution
0.1 %
Flue gas loss (calculated)
Measuring range
0 to 99.9 %
Resolution
0.1 %
Pressure measurement
Measuring range
-40 to +40 hPa
Accuracy
±0.5 hPa
Resolution
0.1 hPa
Flue gas CO (without H₂-compensation)
Measuring range
0 to 4000 ppm
Accuracy
±20 ppm (0 to 400 ppm)
±5 % of mv (401 to 2000 ppm)
±10 % of mv (2001 to 4000 ppm)
Resolution
1 ppm
Reaction time t₉₀
60 s
Ambient CO
Measuring range
0 to 4000 ppm
Accuracy
±20 ppm (0 to 400 ppm)
±5 % of mv (401 to 2000 ppm)
±10 % of mv (2001 to 4000 ppm)
Resolution
1 ppm
Reaction time
60 s
General technical data
Weight
Approx. 660 g
Dimensions
201 x 83 x 44 mm
Operating temperature
-5 to +45 °C
Display function
Graphic 7-line display
Power supply
Battery: 1500 mAh, mains unit 5V/1A
Storage temperature
-20 to +50 °C
