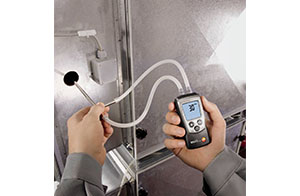

The testo 511 is normally used to measure absolute pressure, e.g. for density compensation in flow measurement in ducts, laboratories and production processes. Other measurement parameters are barometric air pressure (= air pressure at sea level) and altitude above sea level.
Advantages of the testo 511 absolute pressure meter

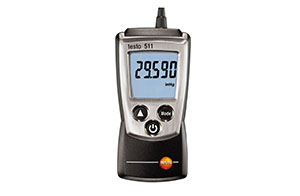

The testo 511 absolute pressure meter is very handy, small and easy to use. It measures the absolute pressure with an accuracy of +/-3 hPa and is ideal for absolute pressure compensation in flow measurements. This is then converted to barometric air pressure by entering the on-site altitude above sea level. You can also use the measuring instrument to measure barometric altitude between two points.
testo 511 absolute pressure meter including protective cap, belt pouch, batteries and calibration protocol.
| Absolute Pressure Measuring range | 300 to 1200 hPa | Accuracy | ±3 hPa ± 1 Digit | Resolution | 0.1 hPa | Measuring rate | 0.5 s | General technical data Dimensions | 119 x 46 x 25 mm (incl. protective cap) | Operating temperature | 0 to +50 °C | Protection class | IP40 | Seceltable units | hPa, mbar, Pa, mmH₂O, inH₂O, inHg, mmHg, psi | Battery type | 2 AAA micro batteries | Battery life | 200 h (average, without display illumination) | Storage temperature | -40 to +70 °C | Weight | 90 g (with batteries and protective cap) |
|---|
