With the testo 868 thermal imager, we have developed a thermal imager which makes work quicker and easier – without foregoing professional thermal imaging technology. You can generate error-free and objectively comparable infrared images using its handy functions. The IFOV warner, testo ɛ-Assist and testo ScaleAssist mean you can avoid measurement errors and not only effortlessly achieve optimum setting of emissivity (ɛ) and reflected temperature (RTC) for building thermography, but also of colour scale.
The testo 868 thermal imager– smart and networked

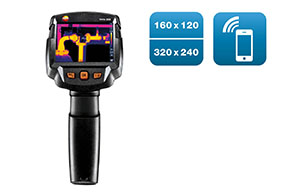

The testo 868 thermal imager guarantees wireless communication with your mobile terminal device via WLAN. With the testo Thermography App for iOS and Android you can write and send reports directly on site, as well as saving them online, and you can use your smartphone or tablet as a second display or for remote control.
Areas of application of the testo 868 thermal imager

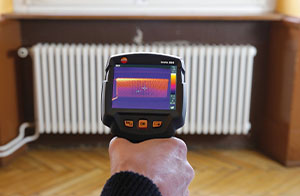

Detect leaks, identify overheated connections, pinpoint thermal bridges or detect structural defects. The testo 868 thermal imager was developed for applications in daily maintenance and installation work in trade and industry. It enables quick and reliable work when you are detecting defects and carrying out maintenance.
Technical highlights of the testo 868 thermal imager
Really simple operation with impressive thermal imaging technology: the testo 868 thermal imager has the following impressive features:
Very good image quality due to high resolution: 19,200 temperature measuring points for precise thermography.
Infrared resolution of 160 x 120 pixels – extended to 320 x 240 pixels via integrated SuperResolution Technology.
Visualizing temperature differences of 0.10 °C
The testo Thermography App enables you to write reports on site, save them online and send them by e-mail, as well as allowing you to use mobile terminal devices as a second display or for remote control
Built-in digital camera generates a real image in parallel to the thermal image
Automatic hot-cold spot recognition directly displays critical temperature conditions.
The testo ScaleAssist automatically ensures optimum setting of the thermal image scale, which means you generate objectively comparable and error-free thermal images, for example of the thermal insulation behaviour of buildings
The testo ɛ-Assist ensures the correct measurement result by automatically determining and setting the emissivity and reflected temperature.
The IFOV warner means the distance from the measurement object / measurement spot size is determined and the measurement spot is shown on the thermal image – you therefore avoid measurement errors because the camera shows you exactly what you can measure.
Pro software for image evaluation on the PC.
You can choose to save thermal images as JPEGs
testo 868 thermal imager with radio module for WLAN, USB cable, mains unit, lithium-ion rechargeable battery, pro software IRSoft (free download), 3 x testo ε-Markers, commissioning instructions, short instructions, calibration protocol and case.
| General technical data | |
| Product colour | Black |
| Display ligthing | bright / normal / dark |
| Ambient Condition Operating temperature | -15 to +50 °C |
| Storage temperature | -30 to +60 °C |
| Air humidity | 20 to 80 %RH non-condensing |
| Housing protection class | IP54 |
| Vibration | 2G |
| Image output visual Image size | at least 3.1 MP |
| Minimum focus distance | 0.5 m |
| Image presentation Display type | 8.9 cm (3.5″) TFT, QVGA (320 x 240 pixels) |
| Display option | IR image / real image |
| Colours | 4 (iron, rainbow, cold-hot, grey) |
| Imager equipment | Full screen mode, JPEG storage, Video streaming via Wi-Fi with testo Thermography App. |
| Standard lens | 31° x 23° Digital camera Included |
| Interface | USB 2.0 Micro B |
| WLAN Connectivity | Communication with the testo Thermography App wireless module Bluetooth/Wi-Fi (EU, EFTA, USA, AUS, CDN, TR) |
| Bluetooth | Measurement value transfer from thermohygrometer testo 605i, clamp meter testo 770-3 (optional); Wireless permit in EU, EFTA, USA, Canada, Australia, Turkey. |
| Imager storage | File format image .bmt; .jpg; export option in .bmp; .jpg; .png; .csv; .xls |
| Storage device | Internal Memory (2.8 GB) |
| Infrared image output Spectral range | 7.5 to 14 µm |
| Infrared resolution | 160 x 120 pixel |
| Thermal sensitivity | 100 mK |
| Field of view | 31° x 23° |
| Minimum focus distance | <0.5 m |
| Geometric resolution (IFOV) | 3.4 mrad |
| SuperResolution (Pixel) | 320 x 240 pixels |
| SuperResolution (IFOV) | 2.1 mrad |
| Image refresh rate | 9 Hz |
| >Measuring range | -30 to +100°C; 0 to +650°C |
| >Accuracy | ±2 °C, ±2 % of m.v. |
| >Emissivity | 0.01 to 1 |
| >Reflected temperature | manual testo ε-Assist included, measuring function solar mode- manual. |
| Input solar radiation | Analysis function Mean point measurement, hot/cold-spot recognition, Delta T, area measurement (min-max on area)Electrical mode – manual |
| Input current voltage power | IFOV warner included, humidity mode-manual included, testo scale assist included. |
| Humidity measurement with humidity measuring instrument | Automatic measurement value transfer of thermohygrometer testo 605i via Bluetooth (instrument must be ordered separately); Wireless permit in EU, EFTA, USA, Canada, Australia, Turkey |
| Electrical measurement with clamp meter | Automatic measurement value transfer of clamp meter testo 770-3 via Bluetooth (instrument must be ordedered separately); Wireless permit in EU, EFTA, USA, Canada, Australia, Turkey. |
| PC software System requirements | Windows 10; Windows 8; Windows 7 |
| Physical specification | |
| Dimensions | 219 x 96 x 95 mm |
| Weight | 510 g |
| Product-/housing material | PC – ABS Power supply |
| Battery type | Fast-charging, Li-ion battery can be changed on-site |
| Operating time | 4.0 h |
| Mains operation | yes |
| Charging options In instrument / charger (optional) | Termovisores garantia EU-/EG-guidelines RED: 2014/53/EU; EMC: 2014/30/EU |
