Description

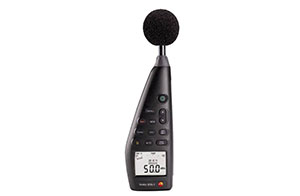

The testo 815 sound level meter can be used for control measurements in the air conditioning and heating area, on combustion systems or at workplaces. It can also enable quick and precise assessment of machinery and discotheque noise.
Applications of the testo 815 sound level meter
Heating technology: measurement of the volume of burners

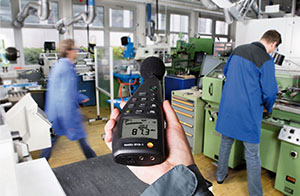

Industry and trade: measurement of machinery noise
Event technology or public authorities: noise levels at events
Building services: simple measurements by the caretaker when there are complaints
Delivery scope
testo 815 sound level meter, including screwdriver for calibration, wind protection and battery.
Technical Data
| Sound Pressure Measuring range | +32 to +130 dB |
|---|---|
| Frequence range | 31.5 Hz to 8 kHz |
| Accuracy | ±1.0 dB |
| Resolution | 0.1 dB |
| Measuring rate | 5 s |
| General technical data Weight | 195 g |
| Dimensions | 255 x 55 x 43 mm |
| Operating temperature | 0 to +40 °C |
| Product-/housing material | ABS |
| Pressure dependency | -0.002 dB/hPa |
| Frequency weighting | A/C |
| Section measuring range | 30 – 80 dB; 50 – 100 dB; 80 – 130 dB | Time weighting | FAST 125 ms setting / SLOW 1 s setting | Battery type | 9V block battery, 6F22 | Battery life | 70 h | Storage temperature | -10 to +60 °C |
