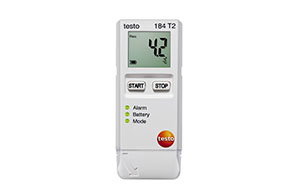

With the temperature data loggers testo 184 T2, you monitor the transport of sensitive goods such as pharmaceuticals, foods or electronics, over a maximum period of 150 days.
At their destination, a glance at the display or the LEDs tells you whether the configured limit values have been adhered to. In order to obtain detailed information, it is sufficient to connect the logger to a PC – a PDF report is immediately generated with all relevant data. In order for you to be able to work even more efficiently and conveniently with the data loggers, all required files and information are stored directly and securely in the testo 184 T2: Configuration file, acceptance test certificate 3.1 according to DIN ISO 10204, instruction manual and PDF report of your recorded data.
The measurement value store of the temperature data logger testo 184 T2 has a capacity of 40000 measurement values. The measurement rate is freely selectable from 1 min to 24 h.
testo 184 T2 is compliant with GxP, 21 CFR Part 11, HACCP and EN 12830. Testo is an ISO 9001-certified company, and ensures the adherence to the norms through internal audits as well as accredited external audits.
All advantages at a glance:
1. Clear alarm indication
A glance at the the LEDs is enough to know whether limit values have been violated during transport.
2. Easiest operation
testo 184 T2 is intuitively operated, and can be used without special training or previous knowledge: The “Start” button begins data recording. “Stop” ends it.
3. Easiest configurationIn each testo 184 T2, a configuration file is stored, with which the configuration of the testo 184 T2 is childsplay – no download, no installation, no user interface and no additional costs.
4. Convenient readout
A PDF report with the transport data is created immediately on connection of the testo 184 T2 data logger to the USB interface of a computer. This is suitable for long-term archiving according to PDF/A standard.
5. Mobile readout/printout on site
All testo 184 T2 data loggers can be read out on site with an NFC-capable Android smartphone. Data transfer from the data logger to a compatible Testo fast printer (option) also functions wirelessly via NFC.
6. IT-safe
The testo 184 T2 data loggers work securely without software installation or download, so that IT problems are triggered neither by the firewall nor the virus scanner.
-35 to +70 °C
Accuracy
±0.5 °C
Resolution
0.1 °C
Reaction time
t90 = 30 min
Measuring rate
1 min to 24 h
General technical data
Weight
44 g
Dimensions
97 x 12 x 40 mm (LxWxH)
Operating temperature
-35 to +70 °C
Product-/housing material
ABS
Protection class
IP67
System requirements
Adobe® Acrobat Reader
Product colour
white
Standards
EN 12830; DIN EN 50581:2013; CE 2014/30/EU; DIN EN 61326-1:2013; 21 CFR Part 11
Certificate type
Certified by HACCP International
Channels
1 internal
Operating time
150 days days from the first time the program is started (5-minute measuring cycle, -35 °C)
Authorizations
CE; RTCA/DO-160G
Alarm function
by LED and Display
Battery type
Lithium battery non exchangeable
Display type
segment LCD
Display size
one-line
Display ligthing
no
Interface
USB; NFC
Memory
40,000 measuring values
Storage temperature
-55 to +70 °C
