The testo 872 thermal imager is ideally suited for professional industrial and building thermography – at the same time it ensures your work is both quick and easy. It is versatile to use, for example in industrial and mechanical maintenance or for detecting structural defects. You can generate error-free and objectively comparable infrared images using its handy functions. The IFOV warner, testo ɛ-Assist and testo ScaleAssist mean you can avoid measurement errors and not only effortlessly achieve optimum setting of emissivity (ɛ) and reflected temperature (RTC) for building thermography, but also of thermal image scale.
The testo 872 thermal imager– smart and networked
The testo 872 thermal imager guarantees wireless communication with mobile terminal devices via WLAN. The testo Thermography App for iOS and Android offers you the possibility of writing and sending reports on site, as well as saving them online, and of using your smartphone or tablet as a second display or for remote control.

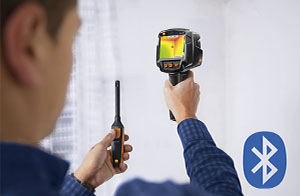

The testo 872 delivers even more informative thermal images in combination with the compatible 770-3 clamp meter and testo 605i thermohygrometer. Both are available separately – simply order them straight away along with your testo 872. The thermal imager wirelessly integrates the measurement results of these measuring instruments via Bluetooth. The additional output, current and voltage values of the testo 770-3 clamp meter enable better interpretation of measured temperatures. Measure the air temperature and humidity with the testo 605i humidity measuring instrument and easily detect locations at risk of developing mould using the special humidity palette in the thermal imager via the traffic light principle.
Areas of application of the testo 872 thermal imager
Detect locations at risk of developing mould, pinpoint thermal bridges, discover structural defects or identify overheated connections. The testo 872 thermal imager is ideal for applications in daily maintenance and installation work in trade and industry. Quick, simple and reliable for maintenance and detection of defects.
Technical highlights of the testo 872 thermal imager
The testo 872 thermal imager is characterized by its easy handling and its outstanding image quality. Its technical features are impressive:

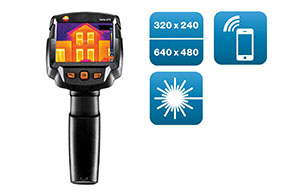

Highest image quality thanks to high resolution: 76,800 temperature measuring points for precise thermography. Infrared resolution of 320 x 240 pixels – extendible to 640 x 480 pixels via integrated SuperResolution Technology
Detecting temperature differences from as little as 0.06°C.
testo Thermography App to use mobile terminal devices as a second display and for remote control or to write and send reports, along with saving them online.
Wireless communication thanks to Bluetooth – this means you can also wirelessly integrate the readings of the compatible testo 770-3 clamp meter and testo 605i thermohygrometer
Built-in digital camera and laser marker generate a real image in parallel to the thermal image.
Critical temperature conditions are directly displayed via automatic hot-cold spot recognition
The testo ScaleAssist automatically ensures optimum setting of the thermal image scale, which means you generate objectively comparable and error-free thermal images, for example of the thermal insulation behaviour of buildings
The testo ɛ-Assist ensures the correct measurement result by automatically determining and setting the emissivity and reflected temperature.
The IFOV warner means the distance from the measurement object / measurement spot size is determined and the measurement spot is shown on the thermal image – you therefore avoid measurement errors because the camera shows you exactly what you can measure.
Pro software for image evaluation on the PC
You can choose to save thermal images as JPEGs
testo 872 thermal imager with radio module for Bluetooth/WLAN, USB cable, mains unit, lithium-ion rechargeable battery, pro software IRSoft (free download), 3 x testo ε-Markers, commissioning instructions, short instructions, calibration protocol and case.
| General technical data | |
| Ambient Condition Operating temperature | -15 to +50 °C |
| Storage temperature | -30 to +60 °C |
| Air humidity | 20 to 80 %RH non-condensing |
| Housing protection class | IP54 |
| Vibration | 2G |
| Image output visual Image size | at least 3.1 MP |
| Minimum focus distance | 0.5 m |
| Image presentation Display type | 8.9 cm (3.5″) TFT, QVGA (320 x 240 pixels) |
| Digital zoom | 2x; 4x |
| Display option | IR image / real image |
| Colours | 10 (iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo, iron HT) |
| Imager equipment | Full screen mode included, JPEG storage included, video streaming via Wi-Fi with testo Thermography App. |
| Standard lens | 42° x 30° Digital camera Included |
| Interface | USB 2.0 Micro B |
| WLAN Connectivity | Communication with the testo Thermography App wireless module Bluetooth/Wi-Fi (EU, EFTA, USA, AUS, CDN, TR) |
| Bluetooth | Measurement value transfer from thermohygrometer testo 605i, clamp meter testo 770-3 (optional); Wireless permit in EU, EFTA, USA, Canada, Australia, Turkey. |
| Laser | Laser marker |
| Imager storage | File format image .bmt; .jpg; export option in .bmp; .jpg; .png; .csv; .xls |
| Storage device | Internal Memory (2.8 GB) |
| Infrared image output Spectral range | 7.5 to 14 µm |
| Infrared resolution | 320 x 240 pixel |
| Thermal sensitivity | 60 mK |
| Field of view | 42° x 30° |
| Minimum focus distance | <0.5 m |
| Geometric resolution (IFOV) | 2.3 mrad |
| SuperResolution (Pixel) | 640 x 480 pixels |
| SuperResolution (IFOV) | 1.3 mrad |
| Image refresh rate | 9 Hz |
| >Measuring range | -30 to +100°C; 0 to +650°C |
| >Accuracy | ±2 °C, ±2 % of m.v. |
| >Emissivity | 0.01 to 1 |
| >Reflected temperature | manual testo ε-Assist included, measuring function solar mode- manual. |
| Input solar radiation | Analysis function Mean point measurement, hot/cold-spot recognition, Delta T, area measurement (min-max on area)Electrical mode – manual |
| Input current voltage power | IFOV warner included, humidity mode-manual included, testo scale assist included. |
| Humidity measurement with humidity measuring instrument | Automatic measurement value transfer of thermohygrometer testo 605i via Bluetooth (instrument must be ordered separately); Wireless permit in EU, EFTA, USA, Canada, Australia, Turkey |
| Electrical measurement with clamp meter | Automatic measurement value transfer of clamp meter testo 770-3 via Bluetooth (instrument must be ordedered separately); Wireless permit in EU, EFTA, USA, Canada, Australia, Turkey. |
| PC software System requirements | Windows 10; Windows 8; Windows 7 |
| Physical specification Dimensions | 219 x 96 x 95 mm |
| Weight | 510 g |
| Product-/housing material | PC – ABS |
| Power supply Battery type | Fast-charging, Li-ion battery can be changed on-site |
| Operating time | 4.0 h |
| Mains operation | yes |
| Charging options In instrument / charger (optional) | Termovisores garantia EU-/EG-guidelines RED: 2014/53/EU; EMC: 2014/30/EU |
| Product colour | Black |
| Display ligthing | bright / normal / dark |
