Outstanding image quality, automatic allocation/archiving of thermal images to the measurement object and professional image analysis and reporting make the testo 883 thermal imager the perfect partner for service engineers, facility managers and building energy consultants.
All the important information about the testo 883 thermal imager

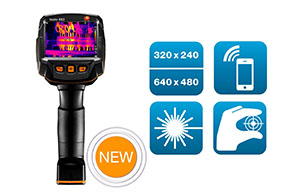

IR resolution of 320 x 240 pixels (with SuperResolution 640 x 480 pixels), manual focus and a very good NETD of 40 mK all ensure the best image quality – so you can reliably detect thermal abnormalities in installations and buildings
testo SiteRecognition enables intelligent image management. Thermal images are automatically assigned to the correct measurement object based on the QR code at the measuring location – this eliminates the need for tedious, manual image assignment on the PC
testo IRSoft: Analyze thermal images comprehensively with the intuitive, professional PC software and create impressive reports within a short period of time
testo ScaleAssist: Automatic contrast adjustment for objectively comparable thermal images and easier detection of weak spots
testo Thermography App: With the app, your smartphone/tablet becomes a second display and a remote control for your thermal imager. You can quickly create, send or save reports on site.
Interchangeable telephoto lens for distant objects and outdoor recording
Manual focus for sharp thermal images from a distance of 10 cm
Can be operated via touchscreen and joystick
Wireless transmission of readings from clamp meter or humidity probe directly into the thermal image via Bluetooth®.
Further advantages for service engineers and facility managers.
Easy to handle – clever management of images and data thanks to testo .
SiteRecognition: automatic assignment of thermal images to the correct measurement object using QR code, Data Matrix code, barcode or Testo 2D code, transfer of measuring locations from existing inventory lists, export of work results (in .xls format) enables further processing in third-party programs
Smart: Carry out quick analyses directly on site with the testo Thermography App and share thermal images with colleagues straight away

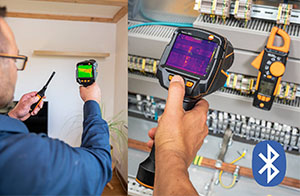

Networked: Wireless transmission of readings from the Testo clamp meter directly into the thermal image – this enables you to document the load status directly in the thermal image when checking switching cabinets, for example, and to reliably assess the condition of the system.
Intuitive operation via touchscreen and joystick.
Further advantages for building energy consultants.
Produce a professional report quickly and easily: The report wizard guides you step by step through the report creation process using stored standard templates. Or you can use the report designer to create customized templates.
Clever: The humidity mode visualizes the risk of mould at thermal weak spots directly in the thermal image using traffic light colours (red, yellow, green)
Smart: Thermography and live streaming – with the testo Thermography App, your customer can conveniently follow the measurement on a smartphone/tablet.
Networked: Wireless transmission of readings from the optional humidity probe live in humidity mode – your values are always up to date, e.g. when you change rooms.
Flexible: Interchangeable lenses and manual focus for sharper images and more accurate results from different distances
testo 883 thermal imager with standard lens 30° x 23°
Robust case
Professional software IRSoft (free download)
USB-C cable
USB mains unit
Li-ion rechargeable battery
Carrying strap for the thermal imager
Bluetooth® headset (depending on the country)
Short instructions
Calibration protocol.
| General technical data | |
| Product colour | Black |
| Display type | capacitive touch display |
| Display ligthing | bright / normal / dark |
| Infrared image output Focus | manual |
| Infrared resolution | 320 x 240 pixel |
| Thermal sensitivity | ˂ 40 mK |
| Field of view | 30° x 23° (Standard lens), 12° x 9° (Telephoto lens) |
| Minimum focus distance | < 0.1 m (Standard lens) |
| Geometric resolution (IFOV) | 1.7 mrad (standard lens), 0.7 mrad (telephoto lens) |
| SuperResolution (Pixel) | 640 x 480 pixels |
| SuperResolution (IFOV) | 1.3 mrad |
| Image refresh rate | 27 Hz* |
| Spectral range | 7.5 to 14 µm * Inside the EU, outside 9 Hz |
| Image output visual Minimum focus distance | < 0.4 m |
| Image size | 3 MP Image presentation |
| Display option | IR image / real image |
| Colours | iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo, iron HAT, humidity palette |
| Display type | 8.9 cm (3.5″) TFT, QVGA (320 x 240 pixels) |
| Digital zoom | 2x; 4x |
| Measurement Reflected temperature | manual testo ε-Assist |
| Measurement Reflected temperature | manual testo ε-Assist |
| Measurement | |
| Reflected temperature | manual testo ε-Assist |
| Measuring range | -30 to +650°C |
| Accuracy | ±2 °C, ±2 % of m.v.; (greater value applies) |
| Emissivity | 0.01 to 1 |
| Measuring function | Solar mode – manual Input solar radiation |
| Analysis function | Up to 5 selectable individual measuring points, hot/cold spot detection, Delta T, area measurement (min/max on area), alarms, isotherm Electrical mode – manual |
| Input current voltage power | IFOV warner |
| Humidity mode – manual | testo ScaleAssist |
| Humidity measurement with humidity measuring instrument | Automatic measurement value transfer of thermohygrometer testo 605i via Bluetooth (instrument must be ordered separately); Wireless permit in EU, EFTA, USA, Canada, Australia, Turkey. |
| Electrical measurement with clamp meter | Automatic measurement value transfer of clamp meter testo 770-3 via Bluetooth (instrument must be ordedered separately); Wireless permit in EU, EFTA, USA, Canada, Australia, Turkey * An overview of radio authorizations in the different countries can be found in the download section of the respective product page (www.testo.com) |
| Imager equipment | Full screen mode Included, JPEG storag included Video streaming via Wi-Fi with testo Thermography App; via USB Voice recording included, site recognition. |
| Standard lens | 30° x 23° |
| Digital camera Included | Interface USB 2.0; USB-C |
| WLAN Connectivity | Communication with the testo Thermography App/ wireless module BT/WLAN* |
| Bluetooth | Headset for voice annotations, transfer of readings from testo 605i thermohygrometer, testo 770-3 clamp meter (optional)** |
| Laser marker | * An overview of radio authorizations in the different countries can be found in the download section of the respective product page (www.testo.com) ** excepting USA, China Laser: excepting USA, China and Japan Voice recording : An overview of radio authorizations in the different countries can be found in the download section of the respective product page (www.testo.com) |
| Imager storage | File format image .bmt; .jpg; export option in .bmp; .jpg; .png; .csv; .xls |
| Storage device | Internal Memory (2.8 GB) |
| Power supply Battery type | Fast-charging, Li-ion battery can be changed on-site ≥ 5 h |
| Charging options In instrument / charger (optional) | yes |
| Ambient Condition Housing protection class | IP54 |
| Vibration | 2G |
| Air humidity | 20 to 80 %RH non-condensing |
| Storage temperature | -30 to +60 °C |
| Operating temperature | -15 to +50 °C |
| Physical specification | Tripod mounting 1/4″ – 20UNC; carrying strap |
| Product-/housing material | PC – ABS |
| Weight | 824 g |
| Dimensions | 171 x 95 x 236 mm |
| PC software System requirements | Windows 10; Windows 8; Windows 7 |
