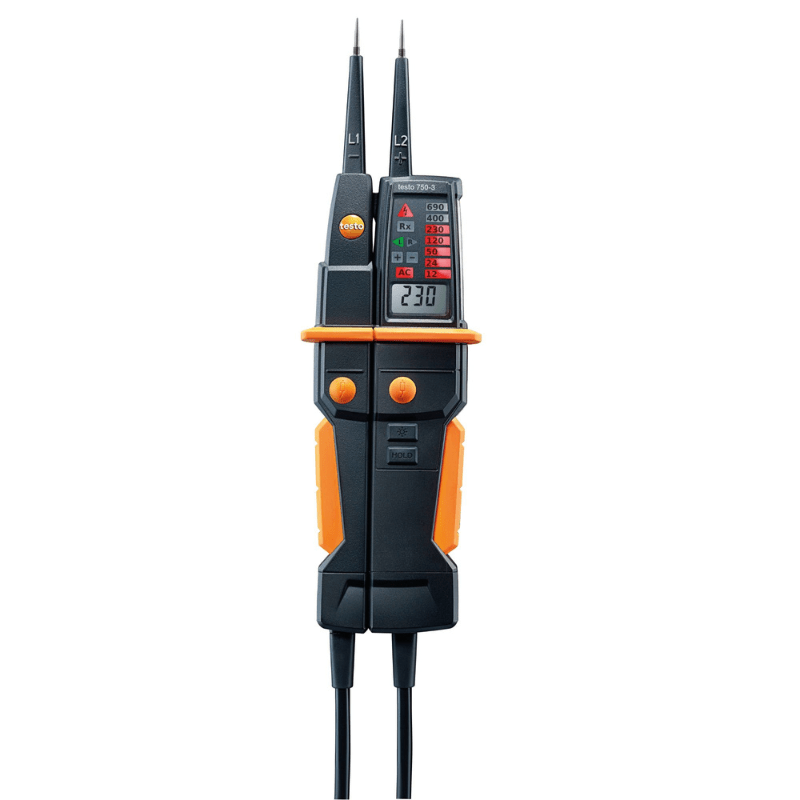

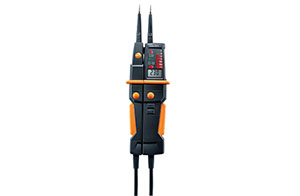

The testo 750-3 voltage tester is the most innovative voltmeter on the market. The clear all-round LED display with fibre-optic technology for ideal voltage indication can easily be read in any position. A second LC display also indicates the current reading. An anti-slip ring and the ergonomic shape of the handle also ensure you can work comfortably. The integrated torch helps with the illumination of dark measuring points. And the voltage tester is extremely durable thanks to the robust housing. The testo 750-3 voltage tester is first and foremost suitable for determining voltage or de-energization on electrical circuits or systems. In addition, it can also be used to test continuity, measure rotating magnetic fields and test residual current circuit breakers via the RC trigger function. Vibrating load buttons ensure that trigger tests cannot be carried out accidentally.
12 to 690 V
Resolution
max. 0.1 V
Accuracy
± (3 % of mv + 5 Digit)
AC voltage Measuring range
12 to 690 V
Resolution
max. 0.1 V
General technical data Operating humidity
0 to 95 %RH
Weight
295 g
Dimensions
270 x 70 x 35 mm
Operating temperature
-10.0 to 50.0 °C
Product colour
Black
Protection class
IP64
Standards
EN 61243-3; EN 61326-1; EN 61010-1
Battery type
2 AAA micro batteries
Display type
LCD (Liquid Crystal Display)
Display size
one-line
Storage temperature
-15 to +60 °C
Overvoltage Category
CAT IV 600V; CAT III 1000V
Authorizations
CSA; CE
Instrument Measurement Functions Continuity testing
yes.
Display ligthing
yes.
Hold
yes.
RDC/RC trigger function
yes.
Rotating magnetic field testing
yes.
Single pole phase testing
yes.
Measuring point illumination
yes.
