The following values can be read off the logger display:
With mains operation: CO2 concentration and alternately temperature and humidity. The atmospheric pressure values are not shown on the logger display, however they are available in the Cloud.
In battery mode: CO2 concentration and temperature. The data for humidity are not displayed – because that ensures longer battery lives.
All measurement data are stored by the data logger directly in the Testo Cloud via your WLAN. This means you can also document and analyze your measurement data over a longer period of time.
If limit values are exceeded, you will be notified immediately by e-mail or (optionally) SMS thanks to the alarm function. You can access all measuring values and analysis functions anytime and anywhere with your internet-capable smartphone, tablet or PC.

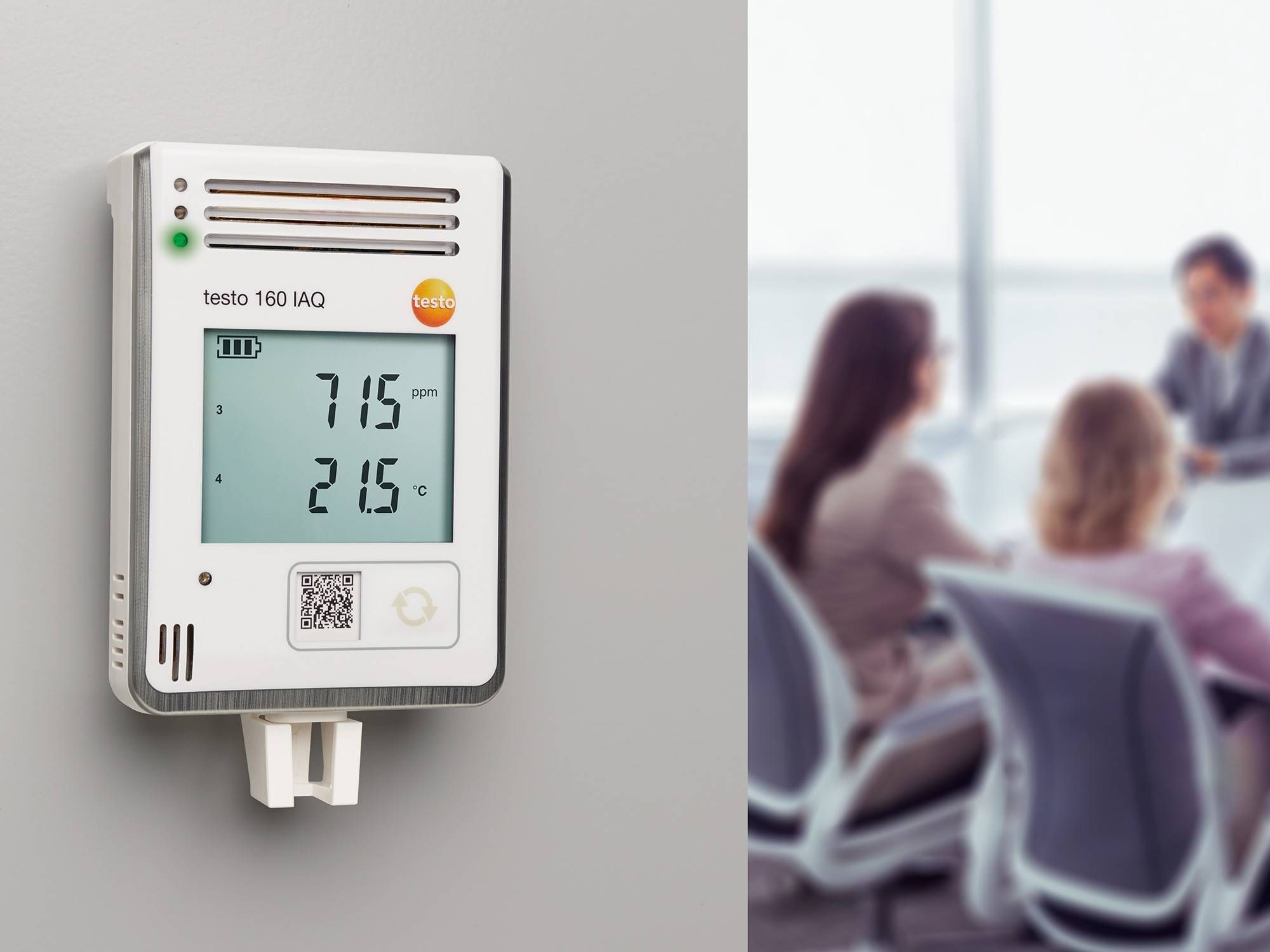

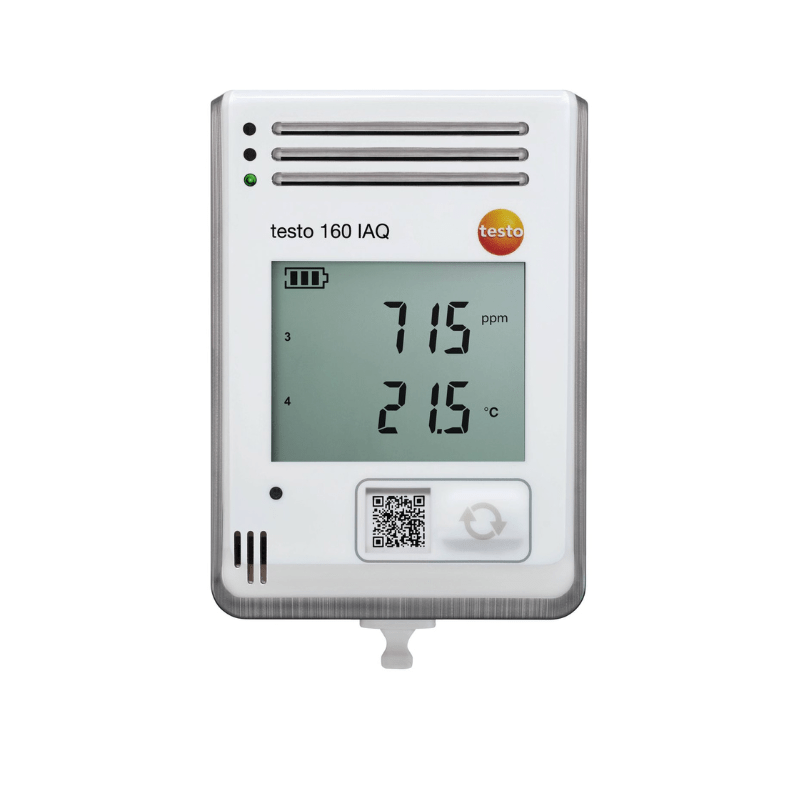

The WiFi data logger testo 160 IAQ – adaptable and inconspicuous
The small dimensions of the data logger testo 160 IAQ (82 x 117 x 32 mm) and its simple design enable it to be easily positioned in any room. Especially for museums and archives, it is particularly important that the focus is always on your exhibits. In conjunction with the optionally available customizable deco-cover (see accessories), the WiFi data logger can be perfectly adapted to blend in with its surroundings and therefore remains particularly inconspicuous.
Perfectly networked: with the WiFi data logger testo 160 IAQ and the Testo Cloud
You must first register at www.saveris.net to have access to the Testo Cloud. Installing the system is simple and can be carried out either via a browser or with the testo Saveris 2 App for IOS and Android.
Depending on the desired range of functions, you have a choice between the free Basic and more extensive Advanced functionality when using the Testo Cloud. You can use the Advanced functionality, for example to create up to 10 users per account or set an SMS alarm if limit values are exceeded.
WiFi data logger testo 160 IAQ Including free Cloud access (Basic functionality) USB mains unit USB interface cable Wall bracket, including tool and adhesive strip QR code sticker Calibration protocol Short instructions.
| Humidity – Capacitive | Measuring range 0 to 100 %RH (non-condensing) | Accuracy | ±2.0 %RH at +25.0 and 20 to 80 %RH ±3.0 %RH at +25.0 and 80 %RH ±1.0 %RH hysteresis ±1.0 %RH / year drift |
Resolution | 0.1 %RH | Absolute Pressure | Measuring range 600 to 1100 mbar | Accuracy | ±3 mbar at +22 °C | Resolution | 1 mbar | Ambient CO₂ Measuring range | 0 to 5000 ppm | Accuracy | ±(50 ppm + 3 % of mv) at 25 °C | Without external power supply: | ±(100 ppm + 3 % of mv) at 25 °C | Resolution | 1 ppm | Temperature Measuring range | 0 to +50 °C | Accuracy | ±0.5 °C | Resolution | 0.1 °C | General technical data | Dimensions 117 x 82 x 32 mm (LxWxH) | Operating temperature | 0 to +50 °C | Product-/housing material | PC – ABS | Protection class | IP20 | Product colour | white | Communication rate Dependent on Cloud licence; | Basic: 15 min … 24 h / Advanced: 1 min … 24 h | WLAN Connectivity | supported wireless LAN standards: IEEE 802.11 b/g/n and IEEE 802.1X; Possible encryption methods: WPA2 Enterprise: EAP-TLS, EAP-TTLS-TLS, EAP-TTLS-MSCHAPv2, EAP-TTLS-PSK, EAP-PEAP0-TLS, EAP-PEAP0-MSCHAPv2, EAP-PEAP0-PSK, EAP-PEAP1-TLS, EAP-PEAP1-MSCHAPv2, EAP-PEAP1-PSK, WPA Personal, WPA2 (AES), WPA (TKIP), WEP | Measuring rate | Dependent on Cloud licence; Basic: 15 min … 24 h / Advanced: 1 min … 24 h | Alarm function | LED (traffic light function: red, yellow, green) | Battery life | 1 year | Display type | LCD (Liquid Crystal Display) | Power supply | 4 x AA batteries 1.5 V, alternatively mains unit via USB connection | Interface | USB | Radio range | 100 m | Memory | 32,000 Measuring values / Sum of all channels | Storage temperature | 0 to +50 °C | Weight | 269 g | Dimension display | 55 x 42 mm |
|---|
