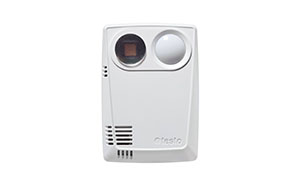

The testo 160 THL belongs to the testo 160 data logger range, which was developed especially for the particular requirements in museums. Thanks to versatile options for combinations of integrated sensors and probes, any monitoring situation, from exhibitions to storage, is covered. Operation and programming of the data logger is simple and carried out directly via the Testo Cloud. Monitoring temperature, humidity, illuminance and UV radiation with WiFi data logger testo 160 THL WiFi data logger testo 160 THL is more than just an easy-to-use climate logger for humidity and temperature monitoring. Thanks to additional integrated sensors for lux and UV radiation, it provides accurate information about the light conditions in a display cabinet or exhibition room. Measurement data is stored by the data logger via your WLAN directly to the Testo Cloud. If limit values are exceeded, you will be notified immediately by email or (optionally) SMS thanks to the alarm function. You can access all measuring values and analysis functions at any time and from anywhere with an internet-capable smartphone, tablet or PC. The WiFi data logger testo 160 THL – adaptable and discreet The small dimensions of the testo 160 THL (64 x 92 x 24 mm) and its simple design enable it to be positioned easily in an exhibition or display cabinet. In conjunction with the optionally available customisable deco-cover (see accessories), the data logger can be adapted to blend in with the surroundings and therefore remains inconspicuous. This means your exhibits will always be the focus. Perfectly networked: with WiFi data logger testo 160 THL and the Testo Cloud The Testo Cloud is the core operating element of the testo 160 data logger range. You can use the testo 160 THL to store your measurement data in the Testo Cloud via an available WLAN. Here you can configure your WiFi data loggers, set limit value alarms and analyze your measurement data. You must first register at www.museum.saveris.net to have access to the Testo Cloud. Installing the system is simple and can be carried out either via a browser or with the testo Saveris 2 App for IOS and Android. Depending on the desired range of functions, you have a choice between the free Basic and more extensive Advanced functionality for use of the Testo Cloud. You can use the Advanced functionality, for example, to create up to 10 users per account or set an SMS alarm if limit values are exceeded. Areas of application for the WiFi data logger testo 160 THL: museums, archives and storage depots Reliably measure the temperature, humidity, illuminance and UV radiation in the display cabinet or exhibition room at all times. The professional WiFi data logger testo 160 THL is optimised for applications relating to the monitoring of ambient conditions in museums, galleries or other exhibition venues. It can be used to reliably protect your sensitive and valuable exhibits against damage. Further advantages and functions of WiFi data logger testo 160 THL The internal data store capacity of the WiFi data logger is 40,000 measuring values, and the housing is protected according to IP20. The standard batteries have a lifetime of 12 months and can be replaced at any time by users. Alternatively, the data logger can also be operated without batteries using a mains unit (please order separately) via the USB interface provided.
0 to 100 %RH (non-condensing)
Accuracy
±2.0 %RH at +25.0 °C and 20 to 80 %RH
±3.0 %RH at +25.0 °C and 80 %RH
±1.0 %RH hysteresis
±1.0 %RH / year drift
Resolution
0.1 %RH
Temperature Measuring range
-10 to +50 °C
Accuracy
±0.5 °C
Resolution
0.1 °C
Light Measuring range
0 to 20000 Lux
Accuracy
DIN 5032-7 Class C-compliant.
±3.0 Lux or ±3.0 % of mv
refers to reference DIN 5032-7 Class L)
Resolution
0.1 Lux
UV Measuring Range
0 to +10000 mW/m²
Accuracy
±5 mW/m² or ±5 % of mv (refers to external reference)
Resolution
0.1 mW/m²
General technical data Dimensions
92 x 64 x 24 mm
Operating temperature
-10 to +50 °C
Protection class
IP20
Communication rate
Dependent on Cloud licence; Basic: 15 min … 24 h / Advanced: 1 min … 24 h
WLAN Connectivity
supported wireless LAN standards: IEEE 802.11 b/g/n and IEEE 802.1X; Possible encryption methods: WPA2 Enterprise: EAP-TLS, EAP-TTLS-TLS, EAP-TTLS-MSCHAPv2, EAP-TTLS-PSK, EAP-PEAP0-TLS, EAP-PEAP0-MSCHAPv2, EAP-PEAP0-PSK, EAP-PEAP1-TLS, EAP-PEAP1-MSCHAPv2, EAP-PEAP1-PSK, WPA Personal, WPA2 (AES), WPA (TKIP), WEP
Measuring rate Dependent on Cloud licence;
Basic: 15 min … 24 h / Advanced: 1 min … 24 h
Battery life
1.5 years
Power supply
4 x AAA batteries 1.5 V, alternatively mains unit via USB connection
Memory
32,000 Measuring values / Sum of all channels
Storage temperature
-20 to +50 °C
Weight
113 g
